Excellent Quality Semi Automatic PET Water Bottle Blowing Machine
---Features
1) Stable performance with advanced PLC
2) Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in theinfrared preheater
3) High adjustability to enable the preheater to preheat performs in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus
4) High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into the state of safety in caseof a breakdown in certain procedure
5) No contamination and low noise with the air cylinder to drive the action instead of the oil pump
6) Satisfaction with different atmospheric pressure for blowing and action by dividing the blowing and action into three parts in the air pressure diagramof the machine
Excellent Quality Semi Automatic PET Water Bottle Blowing Machine
---Technical parameters
| Type | Item | Unit | Technical Data |
| Container | Bottle material | | PET/PVC/PE |
| Container volume of bottle | ml | 200-2500 |
| Theoretical output | P/H | 800-1000(500ml) |
| Max. bottle height | mm | 360 |
| Max. bottle diameter | mm | Φ180 |
| Moulding | Max mould plate dimension | mm | 420×500 |
| Max mould thickness | mm | 250 |
| Clamping force | KN | 150 |
| Mould opening stroke | mm | 240 |
| Air Compressor | Air compressor | M3/Mpa kw | ≥1.0/3.0 11 |
| Air pressure for blowing | M3/Mpa | 30 |
| Main Machine Electricity | Power | KW | 6 |
| Voltage/Frequency | V/HZ | 380/50 |
| Machine Size And Weight | Host Size | M | 1.53×0.62×2.00 |
| Host Weight | T | 0.6 |
| Heater Size | M | 1.8×0.5×1.6 |
| Heater Weight | T | 0.3 |
| High Pressure Compressor Size | M | 1.90×0.75×1.50 |
| Air Filter Weight | Kg | 10×2pcs |
| Auto-emergency alarm | Safety inter-loching device |
Excellent Quality Semi Automatic PET Water Bottle Blowing Machine
---Detailed Part

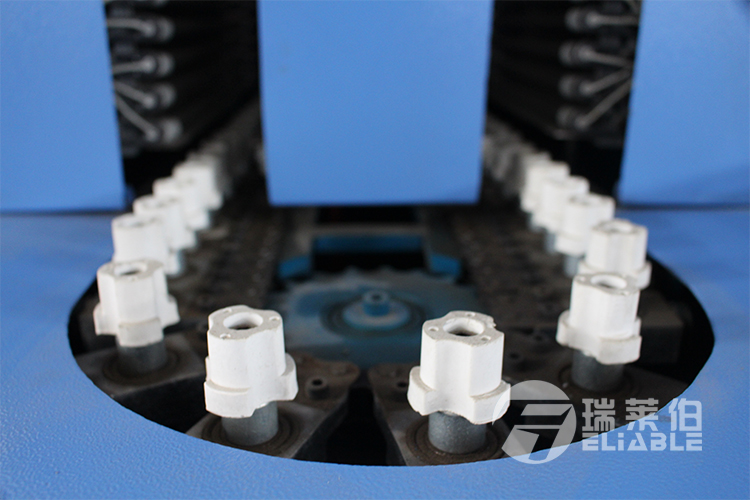

Heart part

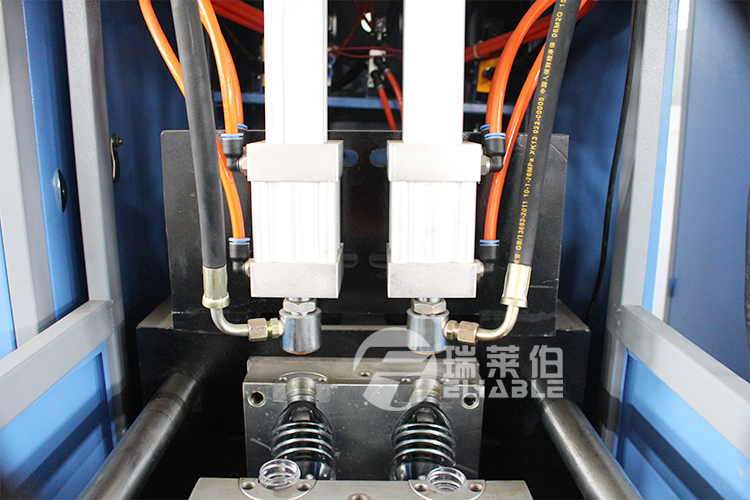

Blow part
--- After Service
We have 1 year warranty, and lifetime maintenance.
Within one year, if there is some accessory going wrong, we will send you the accessory at once, free of charge.
1). Within one month, if the machine is of any big fails, we will send you a new machine.
2). Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; Both of them are free of charge.
3). After one years, we offer to repair the machine, but we quire for the cost of the changed parts, not for manual cost.
4). No responsibility for man-made destroy.
5). If the buyer has any questions from our technical department, we can supply on-line service Or we can send professional engineers to help you debug them.
--- Clients
